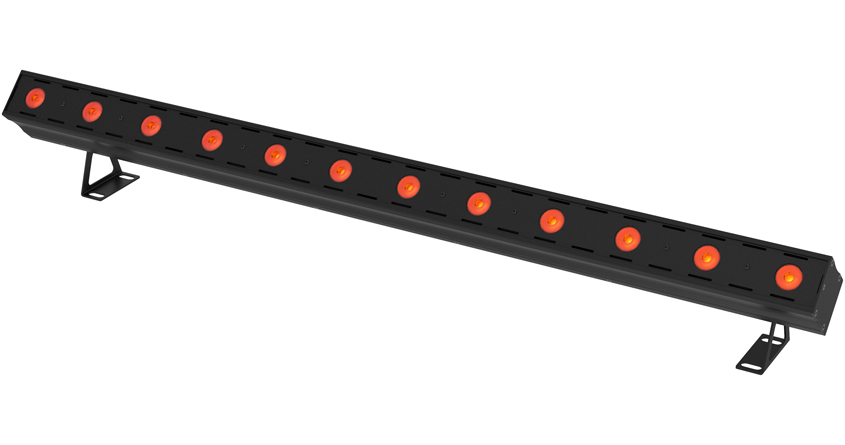

MultiWall™-12A-V3 48W Strip Light

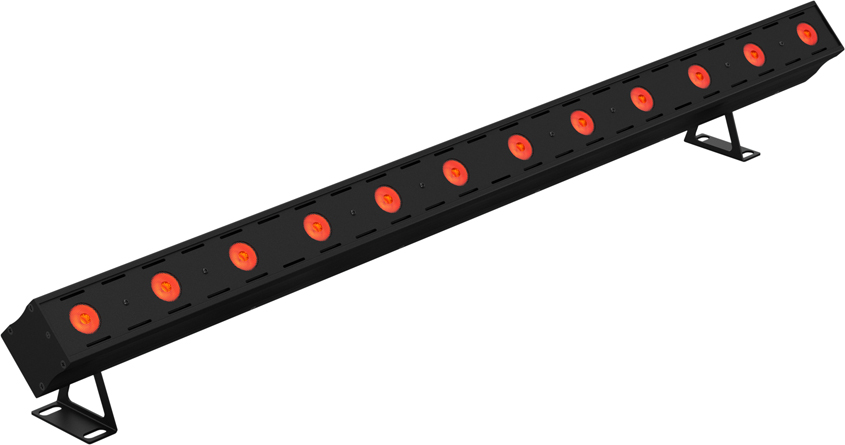

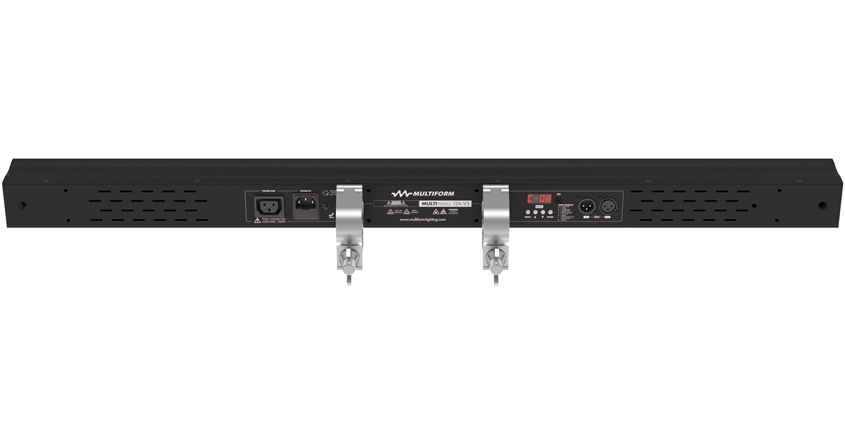

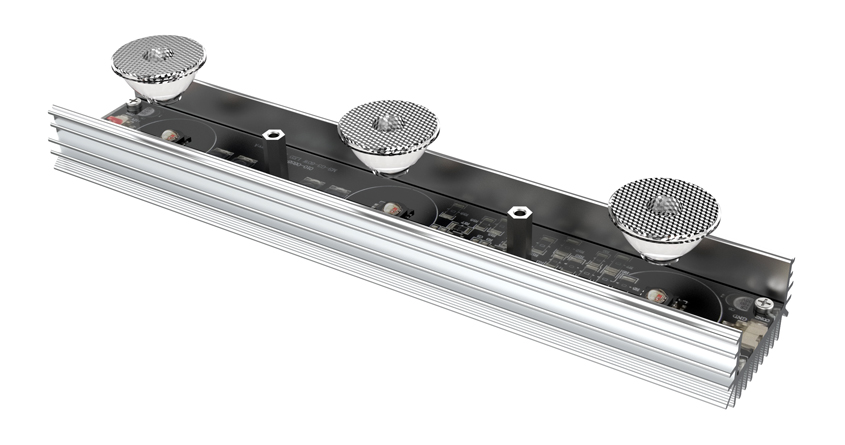

The MULTIWALL™-12A-V3 is the batten of choice for all wall washing and backdrop illumination tasks. Cooling is executed by noiseless convection, with the air stream passing through bottom-to-top, providing best-in-class cooling and hence extended LED lifetime. The 4-chip LEDs are arranged in 4 independent segments and grant smooth colour mixing with wide colour spectrum and only run at half of their rated power, for the sake of reliability. The full metal body provides extreme ruggedness, and offers multiple mounting points for the provided brackets or optional truss couplers.

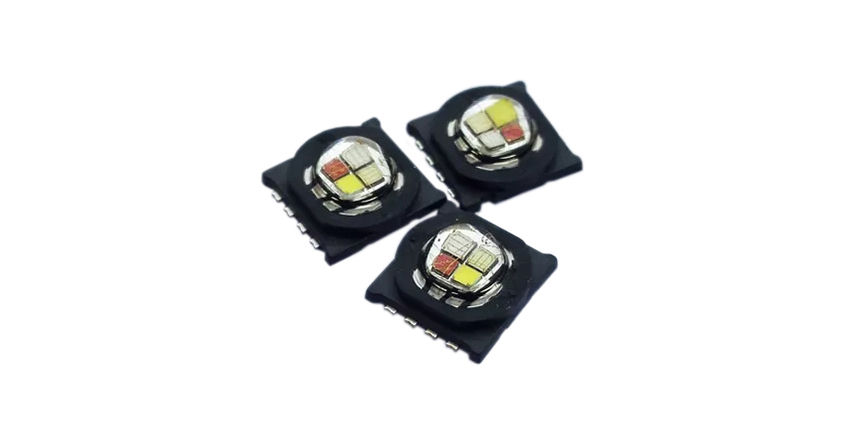

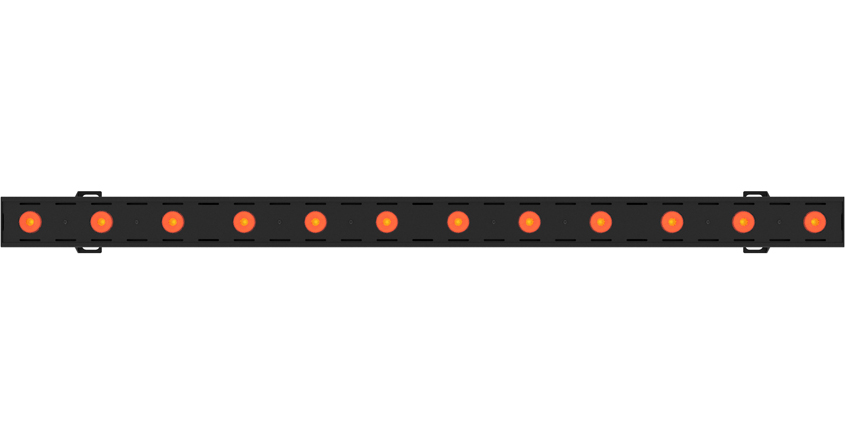

• 12x MultiQuad 4-in-1 RGBA LEDs in 4 segments
• Chip peak 3W, operated at 1W, max. 3150lm
• PDM modulation (camera compliant)
• Modes: Static (14 preset colours), Pattern (20 presets, chase/fade, sound to light), strobe
• 4 DMX control modes with combined or separated dimmer/strobe channels; 3CH mode with 4C emulation, combined or separate segments
• CDA™ Current Drive Array Technology for constant LED current regulation
• PMMA lenses, 15°degree dispersion angle

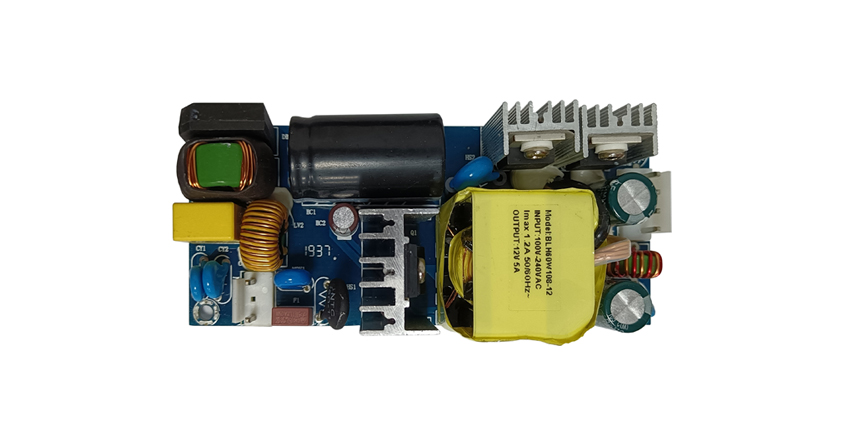

• 60W Industrial grade switch mode PSU
• IEC C14 power input and IEC13 power link
• 3-pin XLR sockets for DMX in- and output
• 4 buttons + LED display user interface
• Noiseless convection cooling

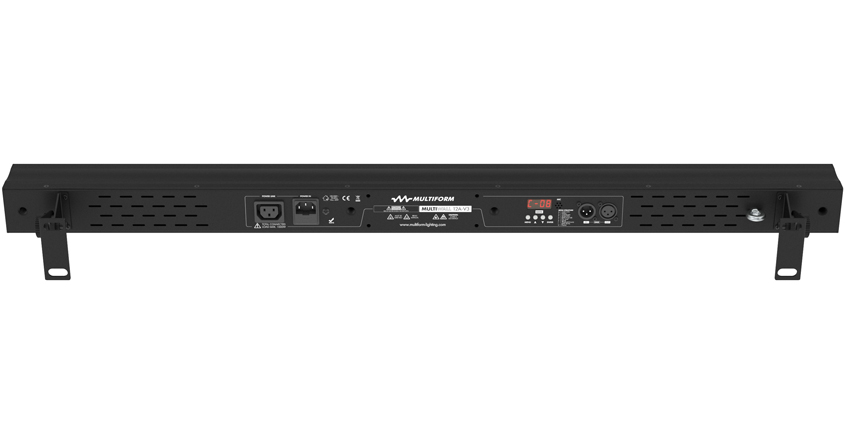

• Metal body, M6 security lug & 2xM10 threads

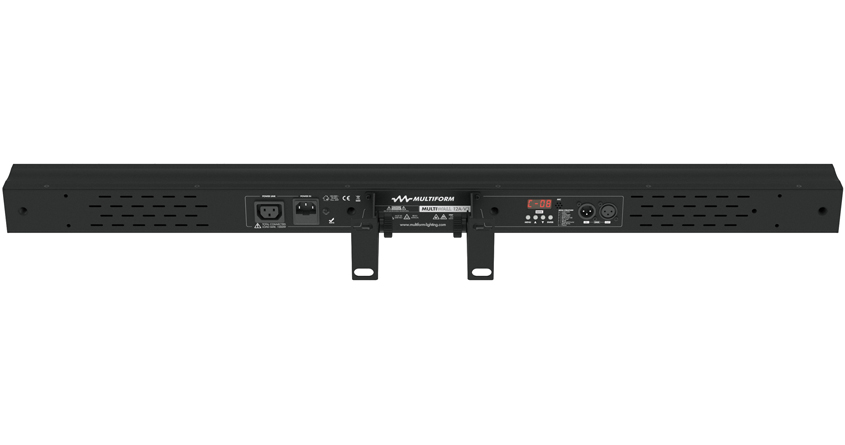

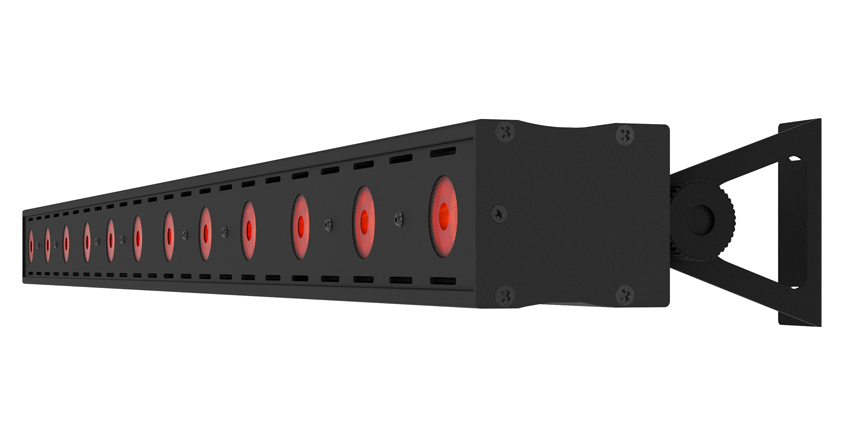

• Multi-purpose brackets (inner/outer mounting)
• CE/ROHS compliant

• LED configuration: 12pcs. ×4W RGBA 4-in-1
• Independent control segments: 4
• Optics: Secondary, PMMA, 15 degrees
• DMX Control & protocol: 3-28 Channels
• Control protocol: DMX 512 (1990)
• IP Rating: 20 (indoor)
• Mains Input: AC100-250V~ 50/60Hz
• Power supply type: Switch Mode (wide range)
• Max. power consumption (average): 47W
• Cooling: convection
• Main body material: Aluminum extrusion
• Dimensions WxHxD: (with straight bracket): 1004 x 80 x 169.5 mm, (without bracket): 1004 x 61 x 70 mm
• Weight: 3.60 kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU
EN 55015:2020
EN 55032:2020
EN 61000-3-2:2021
EN 61000-3-3:2021
EN 61547:2009

LVD Directive 2014/35/EU
EN 60598-2-17:2018
EN 62493:2015

Health and safety Directive 2006/25/EU
EN 62471:2008

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018

MultiWall™-12A-V3
