MultiSpot™-12A-V3 48W Spot Light

MS-12A-V3 (G3-50W)-W01-front-top-right-on_RGB_72dpi_490x563MS-12A-V3-(G3-50W)-W02-front-top-left-on_RGB_72dpi_490x563MS-12A-V3-(G3-50W)-W03-front-straight-on_RGB_72dpi_490x563MS-12A-V3-(G3-50W)-W04-front-top-up-on_RGB_72dpi_490x563MS-12A-V3-(G3-50W)-W05-side-straight_RGB_72dpi_490x563MS-12A-V3-(G3-50W)-W06-rear-straight-on_RGB_72dpi_490x563MS-12A-V3-(G3-50W)-W07-rear-up-on_RGB_72dpi_490x563MS-12A-V3-(G3-25W)-W08-LEDs_RGB_72dpi_490x563pxMS-12A-V3-(G3-50W)-W10-LE_RGB_72dpi_490x563MS-12A-V3-(G3-50W)-W09-PSU_RGB_72dpi_490x563

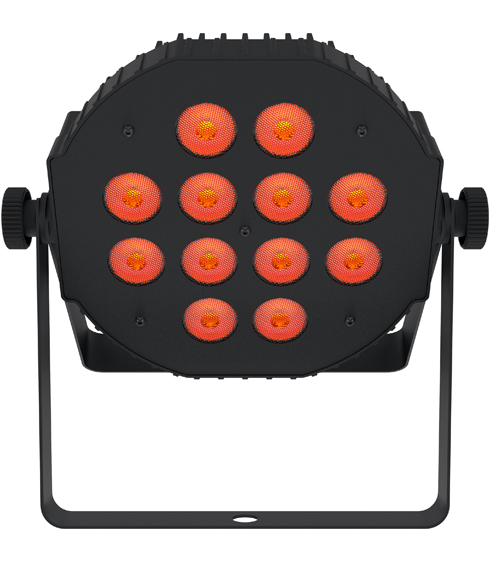

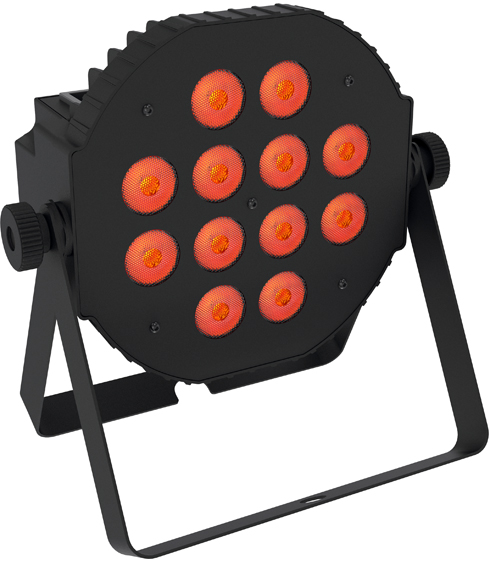

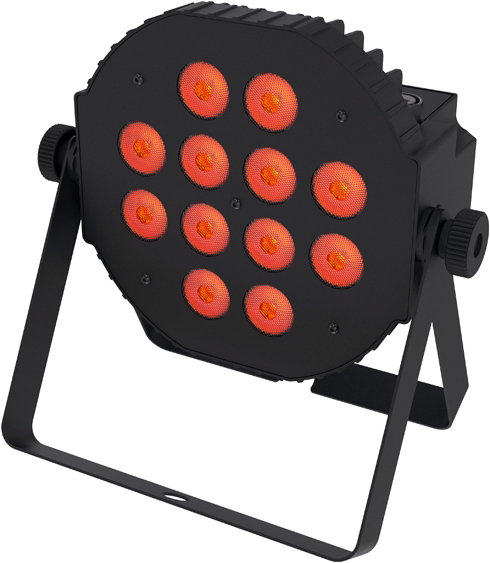

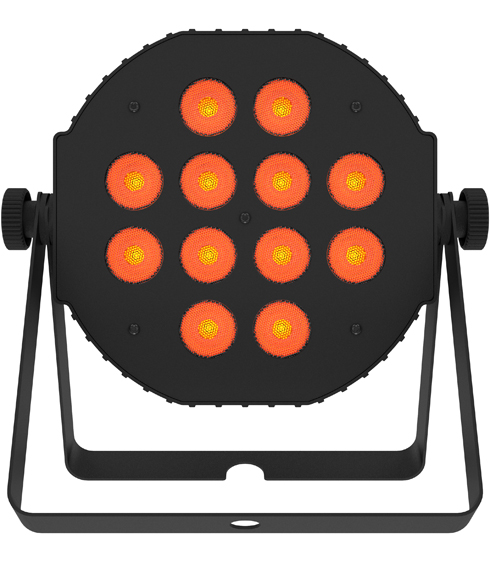

The MULTISPOT™-12A-V3 is the third generation of Multiform’s well-known original Multispot, itself the “father” of all flat PAR LED spots. It stays true to the concept of a real flat fixture, which includes that all connections are made in parallel to the rear panel. Cooling is executed purely by noiseless convection, with the air stream passing through between the LED panel body and the electronics compartment, providing best-in-class cooling and hence extended LED lifetime. The 4-chip LEDs grant inherently smooth colour mixing with wide colour spectrum and only run at half of their rated power, again for the sake of reliability. The diecast body provides extreme ruggedness, and the dual bracket allows hanging or floor standing use. Adding the industrial grade switch mode power supply, this is a merited successor to a line of stage lighting workhorses.

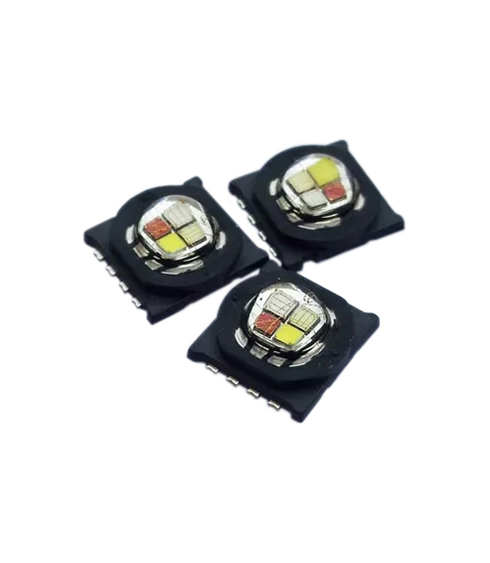

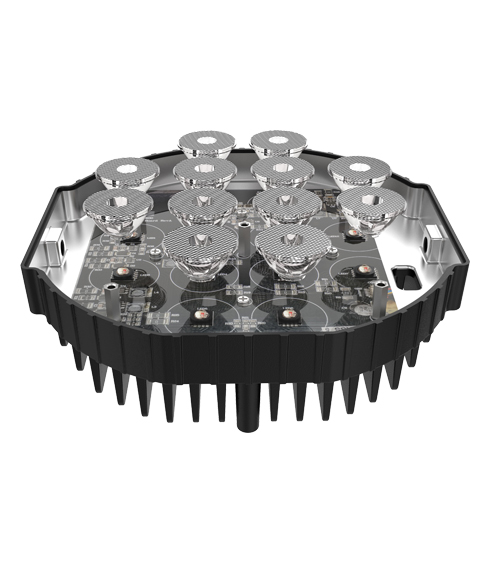

  • 12x MultiQuad 4-in-1 RGBA LEDs
  • Chip peak 3W, operated at 1W, max. 3150lm
  • PDM modulation (camera compliant)
  • Modes: Static (14 preset colours), Pattern (20 presets, chase/fade, sound to light), strobe
  • 4 DMX control modes with combined or separated dimmer/strobe channels; 3CH mode with 4C colour emulation
  • CDA™ Current Drive Array Technology for constant LED current regulation
  • PMMA lenses, 15°degree dispersion angle

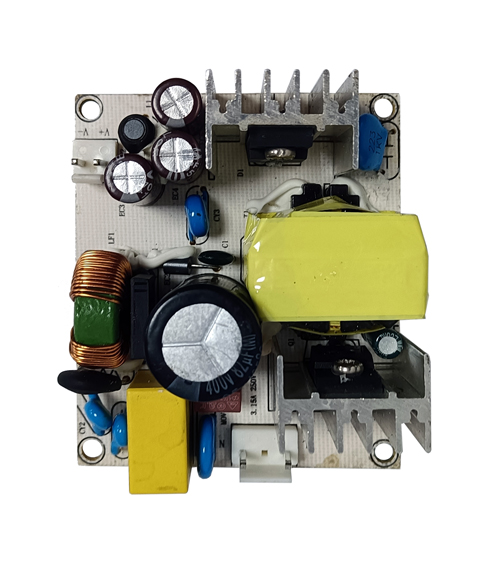

  • 50W Industrial grade switch mode PSU

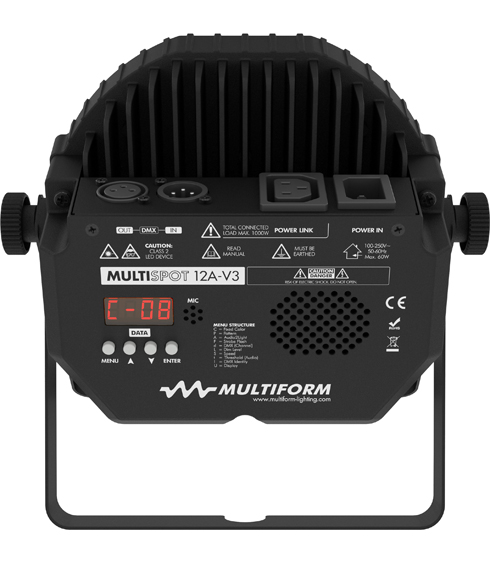

  • IEC C14 power input and IEC13 power link
  • 3-pin XLR sockets for DMX in- and output

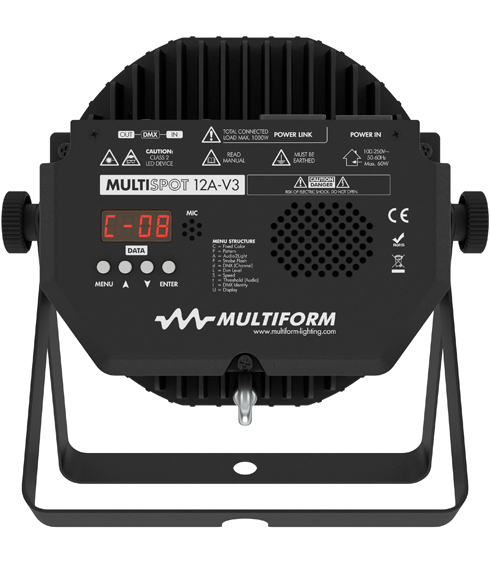

  • 4 buttons + LED display user interface
  • Noiseless convection cooling
  • Diecast body with M6 security lug

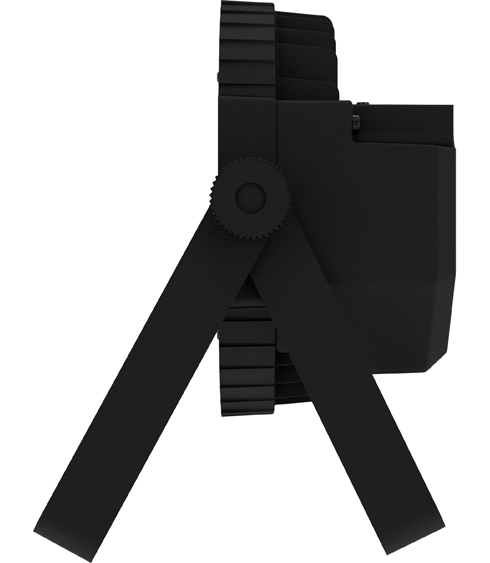

  • Multi-purpose dual split bracket
  • CE/ROHS compliant
  • LED configuration: 12pcs. 4W RGBA 4-in-1
  • Optics: Secondary, PMMA, 15 degrees
  • DMX Control & protocol: 3-6 Channels
  • Control protocol: DMX 512 (1990)
  • IP Rating: 20 (indoor)
  • Mains Input: AC100-250V~ 50/60Hz
  • Power supply type: Switch Mode (wide range)
  • Max. power consumption (avg): 36W
  • Cooling: convection
  • Main body material: diecast
  • PSU cover material: ABS
  • Dimensions (with straight bracket) WxHxD: 180 x 230 x 94 mm
  • Bracket type: dual/split
  • Weight: 2.15 kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU
EN 55015:2020
EN 55032:2020
EN 61000-3-2:2021
EN 61000-3-3:2021
EN 61547:2009

LVD Directive 2014/35/EU
EN 60598-2-17:2018
EN 62493:2015

Health and safety Directive 2006/25/EU
EN 62471:2008

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018

User manual
Datasheet
Picture archive

MultiSpot™-12A-V3

DetailsGTIN-13MSRP*
MF MultiSpot 12AV3 (A) [UV-C14] SC
Order Code: 1005701
5060502925015$ 135.00
Single cartons per master carton (PU): 6
AC Cord: C13
HS Code: 9405409990
Single carton - Size: 265.000/285.000/135.000mm (0.010195875cbm), Weight: 2.65kg
Master carton - Size: 600.000/435.000/290.000mm (0.07569cbm), Weight: 17.00kg

*The MSRP indicates the manufacturer’s suggested net retail price, and is displayed in USD or another currency automatically converted from USD at the applicable daily exchange rate. The MSRP excludes any VAT (if applicable).
