MultiLink™-TA1 Wireless DMX Bridge

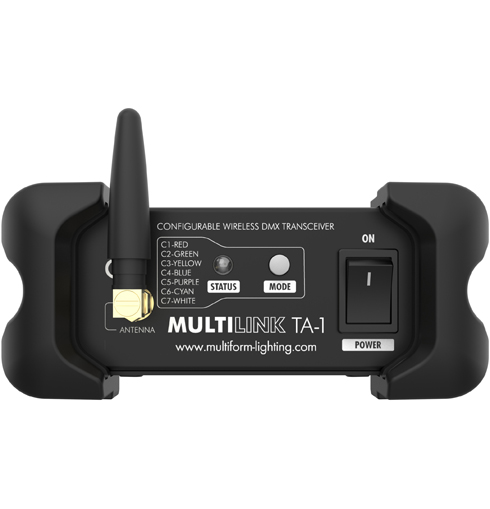

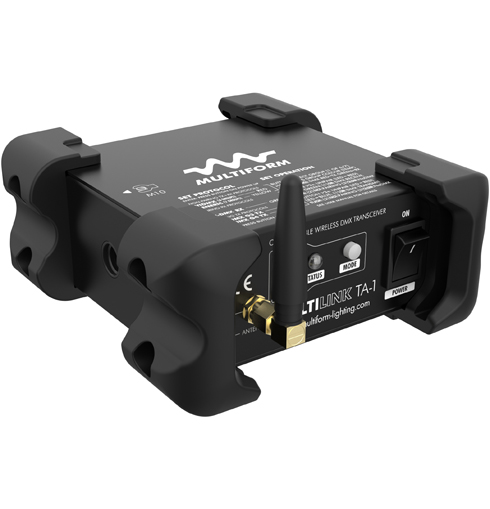

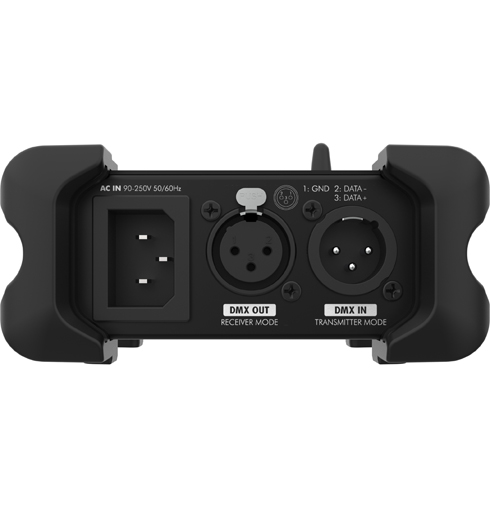

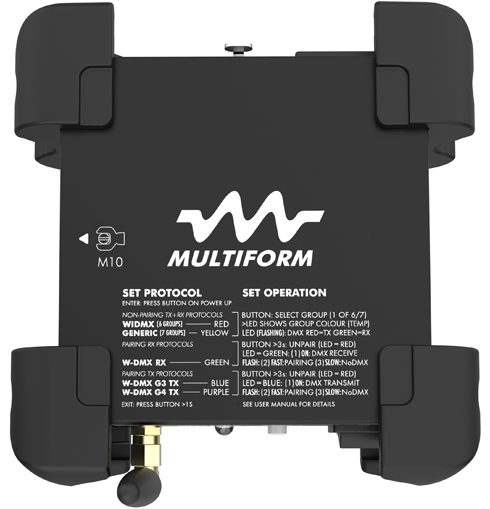

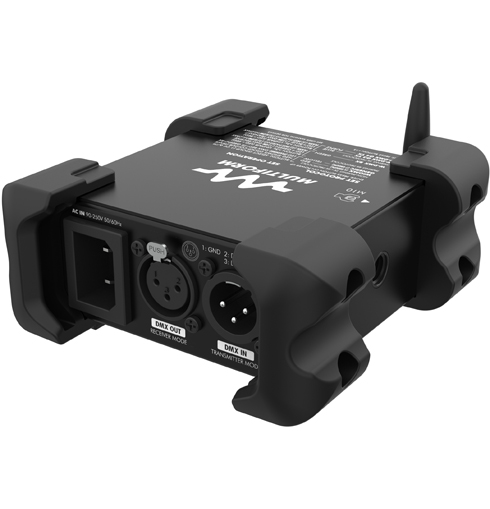

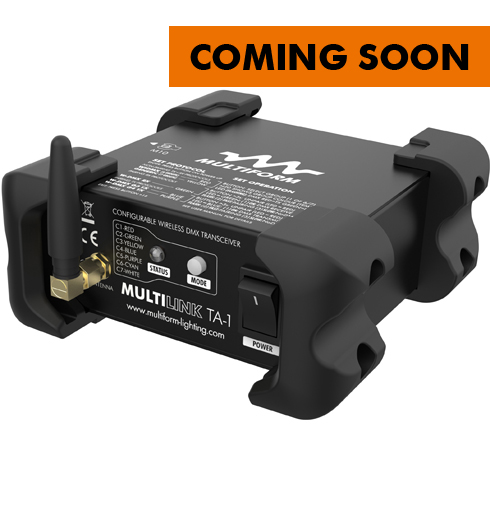

TA1-W01-Front-RightUp-RGB-490x509px-(CS)TA1-W02-Front-LeftUp-RGB-490x509pxTA1-W03-Front-straight_RGB-490x509pxTA1-W04-Rear-RightUp-RGB-490x509pxTA1-W05-Rear-straight-RGB-490x509pxTA1-W06-Top-straight_RGB-490x509px

The MULTILINK™-TA-1 is a wireless DMX bridge which works in the license-free 2.4GHz ISM band and can be configured both as a transmitter and a receiver. Two units can hence be set up to replace cabling up to 100m line of sight. For extended flexibility, a variety of wireless protocols is available. This includes both generic protocols as well as the common W-DMX G3 control, catering for different requirements in terms of number of connected devices and connection stability. An external antenna optimizes the usable range. Due to the internal wide-range power supply, the unit can easily be integrated in professional setups, much unlike products using external power supplies. The sturdy metal case features 4 rubber corners with cavities for standard 35mm truss tubing, allowing the unit to be mounted to truss or tripods via Velcro straps.

  • Wireless DMX bridge operating in the 2.4GHz ISM band
  • Selectable connection protocols: pairing/non-pairing
  • Non-pairing protocols: Generic (7 groups), Wi-DMX (6 groups)
  • Pairing protocols: W-DMX G3/G4
  • Frequency range: 2.402-2.480 GHz (ISM-band, license free)
  • Spread spectrum: FHSS, 1100 hops/sec; modulation: GFSK
  • Configurable as transmitter or receiver
  • Maximum transmission power: 23dBm
  • Receiver sentivity: -94dBm
  • Operation range: 100m line of sight
  • AC mains power via internal wide-range switch mode power supply
  • 3-pin XLR connectors with locking female output connector
  • Sturdy all-metal case with rubber bumpers incl. truss tube cavities and M10 coupler thread insert
  • Protocol: DMX-512 USITT (single universe)
  • Out-/Input: 3-pin XLR female/male socket [pin 1 shield, pin 2 (-), pin 3 (+)]
  • Power supply: 90-264V AC/50-60 Hz
  • Size WxHxD: 121 x 53.5 x 127.5mm
  • Weight: 0.45kg
Datasheet
Picture archive

MultiLink™-TA1

DetailsGTIN-13MSRP*
MF MultiLink TA-1 (A) [UV-C14] SC
Order Code: 1007101
5060502925060$ 95.00
Single cartons per master carton (PU): 8
AC Cord: C13
HS Code: 8537109199
Single carton - Size: 190.000/225.000/80.000mm (0.00342cbm), Weight: 0.75kg
Master carton - Size: 400.000/340.000/250.000mm (0.034cbm), Weight: 6.50kg

*The MSRP indicates the manufacturer’s suggested net retail price, and is displayed in USD or another currency automatically converted from USD at the applicable daily exchange rate. The MSRP excludes any VAT (if applicable).
