LC400H2/F2 Preset Controller

LC400H2F2-W01-Combo-UpLeft_RGB_72dpi_845x500pxLC400H2F2-W02-Front-UpRight-On_RGB_72dpi_845x500pxLC400H2F2-W03-Front-UpLeft-On_RGB_72dpi_845x500pxLC400H2F2-W04-Top-Straight-On_RGB_72dpi_845x500pxLC400H2F2-W05-Rear-Straight_RGB_72dpi_845x500pxLC400H2F2-W06-Rear-UpRight_RGB_72dpi_845x500LC400H2F2-W07-Rear-UpLeft_RGB_72dpi_845x500pxLC400H2F2-W08-Front-UpRight-On-MicStand_RGB_72dpi_845x500pxLC400H2F2-W09-Front-UpRight_RGB_72dpi_845x500pxLC400H2F2-W10-Top-Straight_RGB_72dpi_845x500pxLC400H2F2-W11-Rear-Straight_RGB_72dpi_845x500px

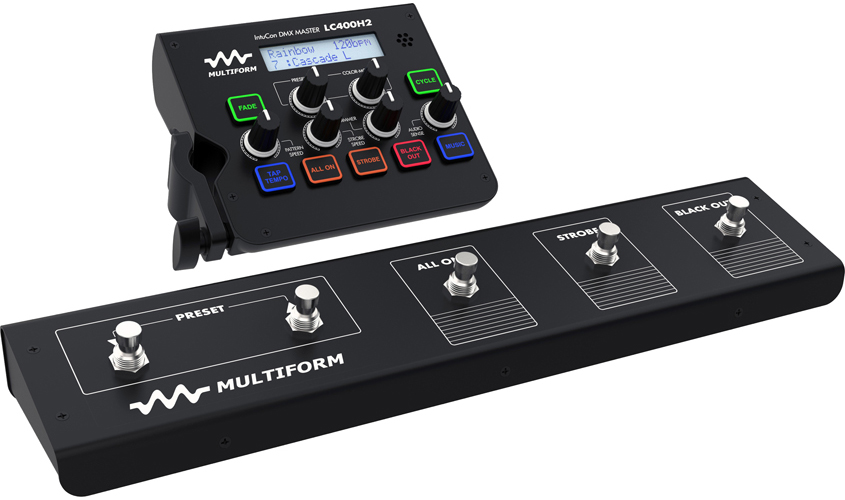

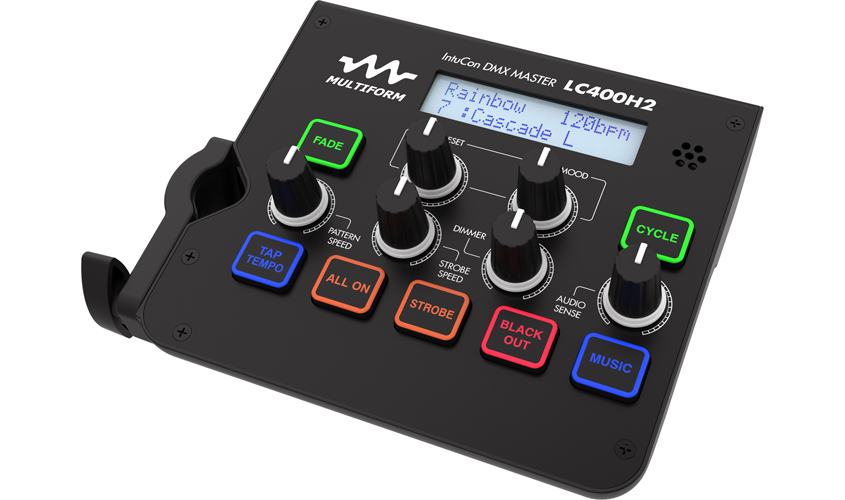

The INTUCON™-LC400 lighting control system consists of a compact desktop control unit with mic stand mounting clamp, and a sturdy metal remote foot controller for hands-free operation. It allows any performer to effortlessly and automatically control impressive light shows without any knowledge of DMX programming. The easy-to-use, pre-program- med operation offers highly diversified light chases which can interact with strobes, all-on lights, or black outs to add dramatic effects instantly or cater for different moods. There are over 30 chases to choose from via backlit, on-the-fly, real-time controls. Tap Tempo and Audio Input options can sync lights to the music beat, while Color Fade and Cycle modes provide the illusion of having a lighting professional at the controls, keeping the show fresh by cycling through various programs.

  • Controls 4 fixture groups with a max. of 7 DMX channels per group
  • 4 Modes: Chasing, All On (Scene), Strobe, Blackout (All Off)
  • 30 patterns and 20 color combinations (moods) in chase & scene mode
  • Switching or fading pattern step transition selectable for chase mode
  • Set-and-forget Cycle Mode for a fully automated experience
  • Speed in chase mode selectable to be a fixed setting or controlled via music; music input either by on-board microphone or external input
  • Strobe speed adjustbale
  • Master brightness adjustable (dimmer)

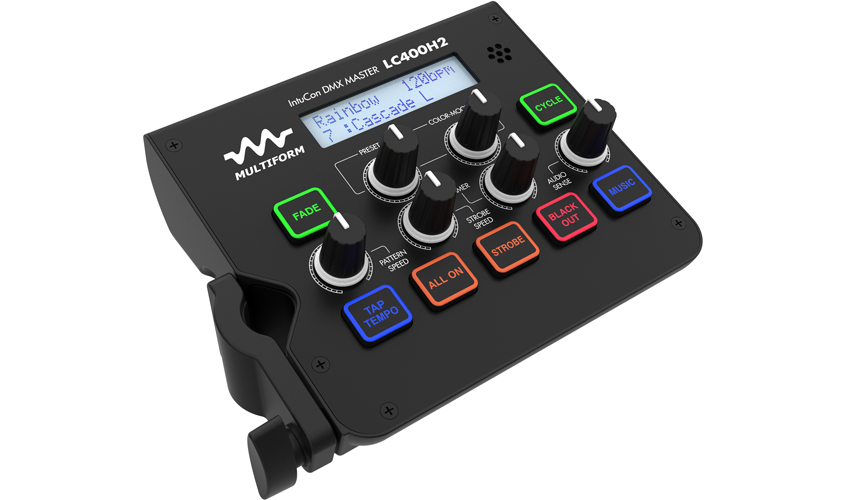

  • 16×2 Backlit LCD display and backlit buttons for all switched functions

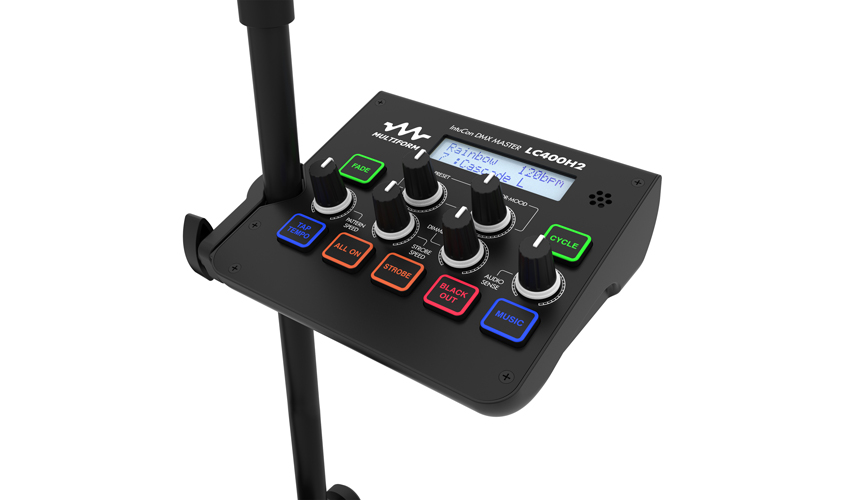

  • Built-in mic stand clamp for standard 11mm stand tubing

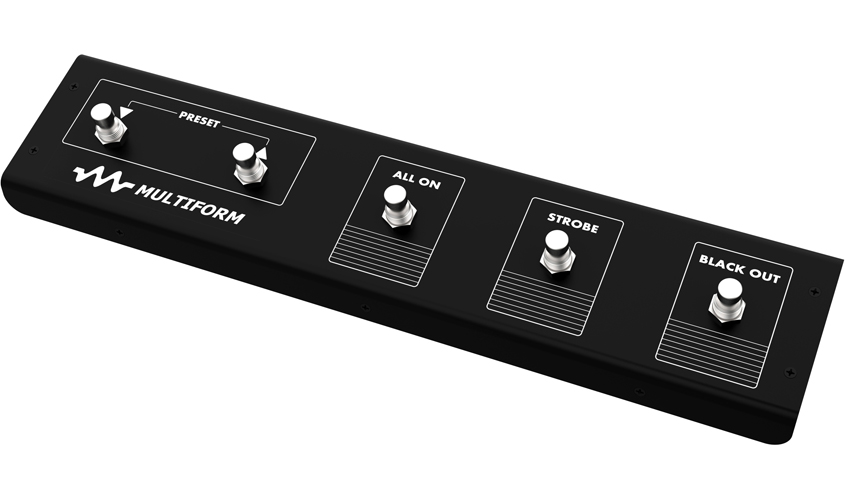

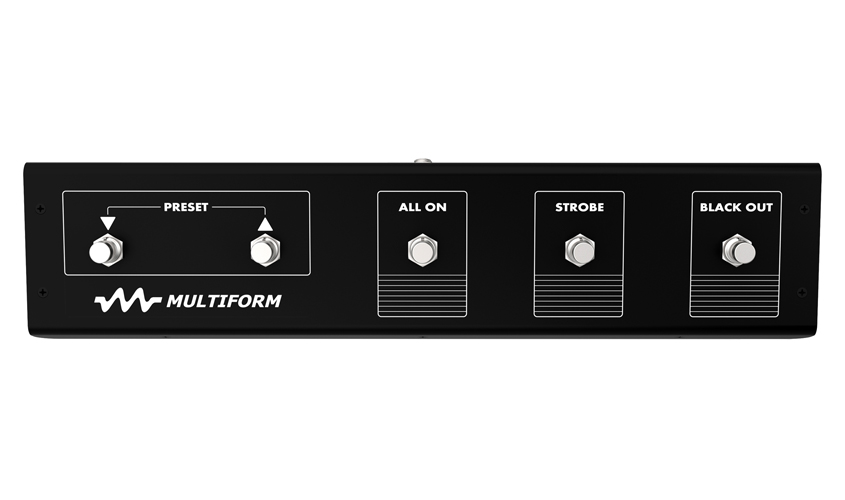

  • All-metal foot switch for preset up/down, all-on, strobe and blackout
  • 9V external AC-DC power supply required (included in delivery)
  • Protocol: DMX-512 USITT

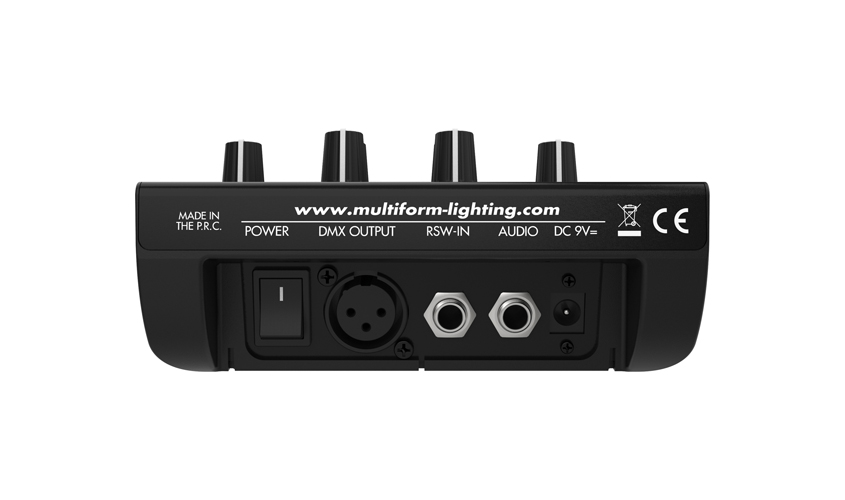

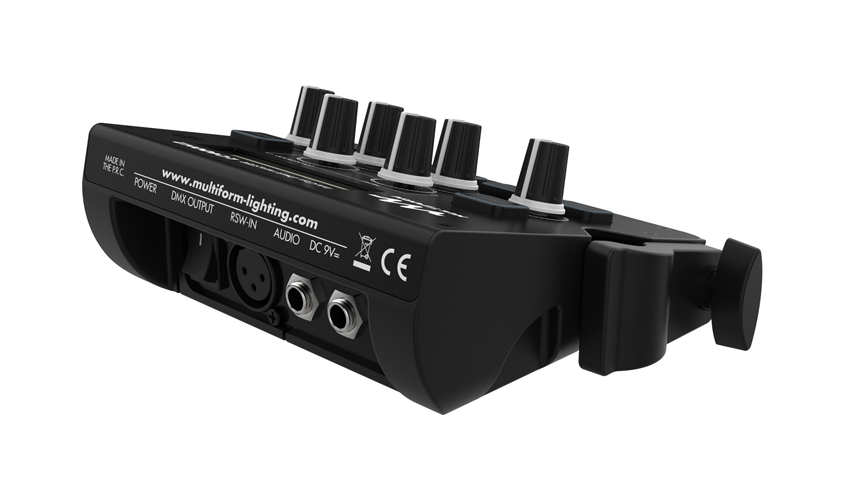

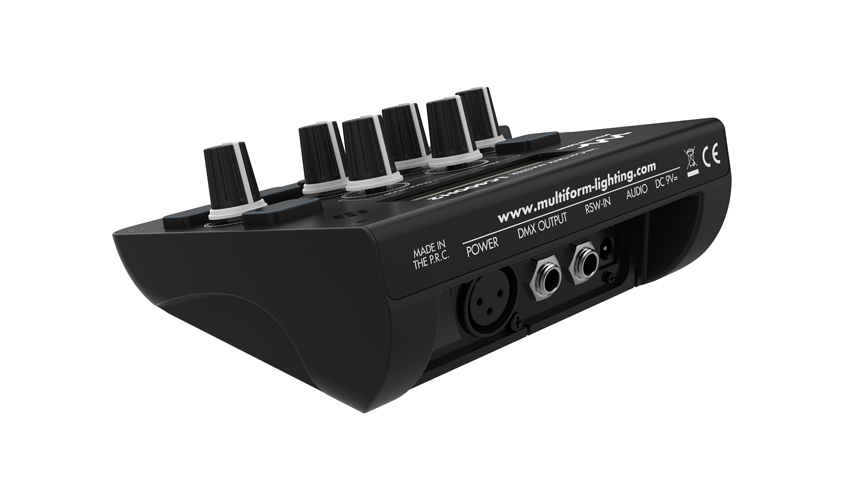

  • Output: 3-pin XLR female socket [pin 1 shield, pin 2 (-), pin 3 (+)]
  • Audio Input: 6.35mm unbal TS, line level

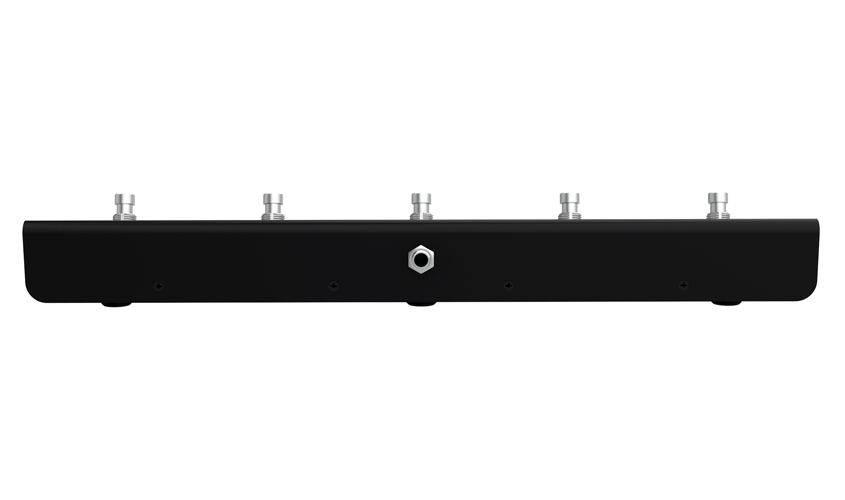

  • Controller Remote Connection: 6.35mm TRS, 2m
  • Power: 9VDC, 1000mA (Center Pin Positive)
  • Power supply: switch mode (wall plug type)
  • Controller Dimensions WxHxD: 158 x 125 x 60 mm
  • Controller Weight: 0.50 kg
  • Foot Remote Dimensions WxHxD: 380 x 82 x 53 mm
  • Foot Remote Weight: 0.90 kg

This product conforms with the following directives/standards/regulations:

EMC Directive 2014/30/EU
EN55035:2017

LVD Directive 2014/35/EU
EN62368-1

ROHS2 Directive 2011/65/EU & 2015/863/EU
EN63000:2018

User manual
Datasheet
Picture archive

LC400H2/F2

DetailsGTIN-13MSRP*
MF IntuCon LC400V2 C+F SET (A) [UV-C14] SC
Order Code: 1006601
5060502925039$ 125.00
Single cartons per master carton (PU): 4
AC Cord: A9VDC1
HS Code: 8537109199
Single carton - Size: 435.000/275.000/95.000mm (0.011364375cbm), Weight: 2.05kg
Master carton - Size: 455.000/410.000/300.000mm (0.055965cbm), Weight: 10.10kg

*The MSRP indicates the manufacturer’s suggested net retail price, and is displayed in USD or another currency automatically converted from USD at the applicable daily exchange rate. The MSRP excludes any VAT (if applicable).
